TECHNICAL SPECIFICATIONS
210 - 240N
140 - 160N
227 MILE RANGE
100% ELECTRIC POWERTRAIN
CYPHER III+
1694mm
2700mm
13KG
BOSCH
5 YEARS/UNLIMITED MILES
31.0 IN
About
PAU Gripen 3D JET
A Game-Changing 3D Jet in the RC Modeling world
We are excited to announce the release of the PAU Composite Gripen 3D, a new game changer in the 3D model Jet world. With Amazing 3D performance
A New Era in RC Aviation
We set out to design a new model jet, however with so many choices in the market, it was a challenge to pick a model that will best fit the performance, aesthetic, and sexiness a model jet should have. With limited choices for delta aircrafts in the market. The SAAB JAS 39 Gripen became a favorite contender.
It took 2 years of research, development and tireless work to be able to release this amazing flying machine. With multiple prototypes that lets say met the ground with a less than desirable outcome, followed by multiple redesigns, we reached the perfect blend of size, weight, power and performance.

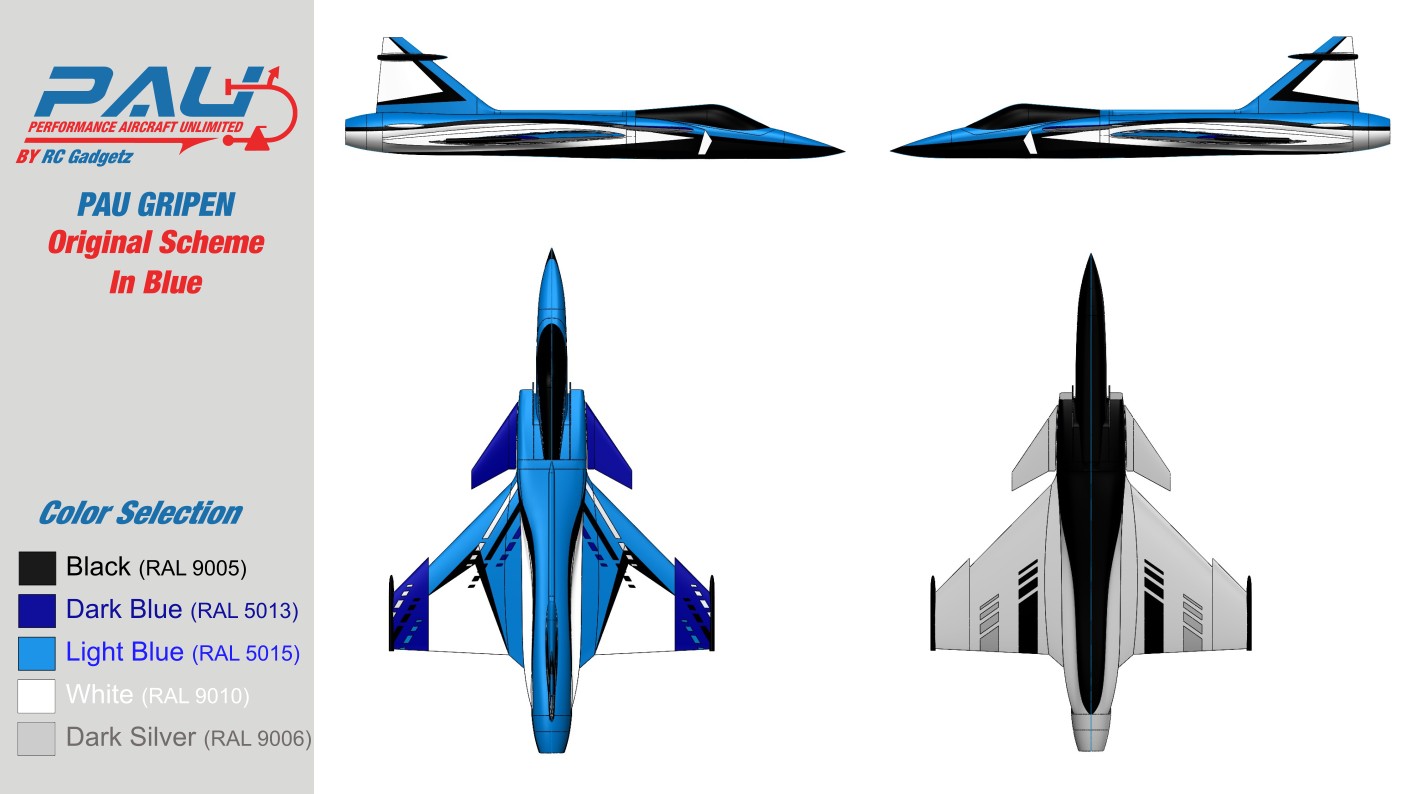

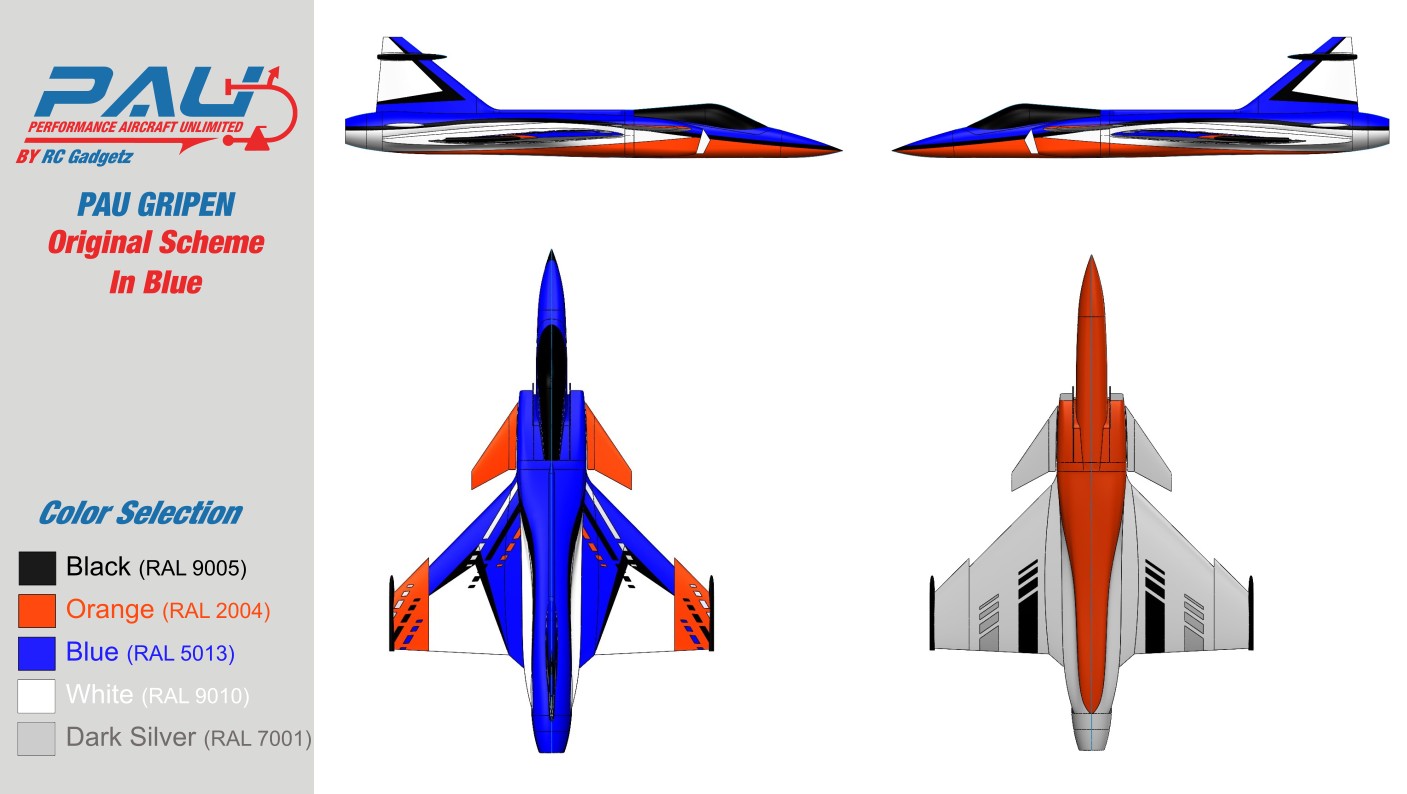

Grippen Colors
We are working on new schemes for the model, for the time being the PAU Original scheme with different color swaps is available.
We currently have one of the yellow model and one of the blue model in stock if you are interested.
Unmatched Features and Performance
The PAU Gripen boasts several features, including:
- Full Composite Airframe
Manufactured using advanced vacuum-bagging techniques, the PAU Gripen features a fully composite structure for maximum strength-to-weight efficiency. All structurally critical areas are reinforced with carbon fiber for enhanced rigidity and durability under extreme flight loads. - Carbon Reinforced Structural Core
High-load zones including wing roots, landing gear mounts, and turbine bay are strategically reinforced to handle aggressive 3D maneuvers and high-energy flight profiles. - Inside-Mold Painted Finish (IMP)
Each airframe is painted directly inside the mold, resulting in a flawless, lightweight, showroom-quality finish. No panel lines, no overspray — just a seamless composite surface with reduced post-processing weight. - Diabolical Turbine Performance (210–250N)
Designed around 210–250N turbine powerplants, the Gripen delivers explosive acceleration, massive vertical authority, and true rocket-like climbs while maintaining precise tracking and control. - Advanced Thrust Vectoring System
The optional vector exhaust transforms the Gripen from a precision delta into a full-blown 3D monster. Experience post-stall maneuvers, high-alpha control, and dramatic pitch authority previously unseen in turbine deltas.
- Independent Dual Canard Servos
Each canard is driven by its own dedicated servo, giving pilots the ability to fine-tune trim, mix, and experimental setups for ultimate control customization. - Legendary Rifle Rolls
The PAU Gripen is engineered for ultra-axial, perfectly centered rifle rolls — clean, locked-in rotation with minimal coupling and zero wobble. - Removable Nose Section
The entire nose assembly is removable for easier transport and storage, making logistics significantly more manageable despite the aircraft’s presence and scale. - Lightweight Carbon Fiber Landing Gear Struts
Custom PAU carbon struts offer high strength with minimal weight, designed to absorb landing loads while maintaining structural integrity and long-term durability. - Optimized Turbine & Systems Bay
Spacious and intelligently designed internal layout allows for clean plumbing, organized wiring, and easy turbine installation and maintenance access. - Optional Fuel Tank / Bladder Configuration
Flexible fuel system setup allows pilots to choose between rigid tanks or bladder systems depending on preference and flying style. - High-Speed Stability with 3D Capability
Delta platform combined with canard authority delivers both high-speed tracking precision and aggressive post-stall maneuver capability — a rare balance in turbine jets.
Turbine
Turbine:
- Sport Flying 140 – 160 N
- 3D Flying 210 – 240N
Other Specs
Servos: 8 high torque servos
Wingspan: 1694mm
Length :2700mm
Weight:13 kg dry
What’s Included
- All-Composite Airframe
Complete factory-finished fuselage, wings, canards, and control surfaces manufactured using PAU’s full composite vacuum-bag construction with carbon-reinforced structural zones. - Wing Tube System
High-strength wing tube for precise alignment, rigidity, and easy assembly/disassembly. - Canard & Rudder Tubes
Dedicated composite tubes for canard and rudder assemblies ensuring accurate geometry and structural reliability. - Complete Hardware Package
Carefully selected mounting hardware required for primary airframe assembly. - Precision Linkages
High-quality control linkages engineered for minimal slop and maximum precision in high-speed flight. - Control Horns – Pre-Installed
Factory-installed control horns for consistent geometry and reduced build time. - Pre-Opened Servo Bays
All servo slots are factory cut and prepared for a clean, efficient installation.
Components Required to Complete the Model
The following components are required to complete and fly the PAU Gripen:
- Thrust Pipe / Vector Pipe System
- Landing Gear System
- Composite Fuel Tank or Bladder System
- High-Torque Servos (as per recommended specifications)
- Receiver System (with Power Distribution)
- Turbine Engine (210–250N Recommended Range)
- Thrust Pipe / Vector Pipe System
Recommended Components to Complete the Aircraft
Power System
Turbine size for 3D VECTORED Flying is 210N-250N.
Turbine size for Normal Flying is 140N-160N.
Recommended Engines
JetCat 250N
Landing Gear
Electron Retracts with PAU Gripen Struts
Thrust Pipe
Turbine size for 3D VECTORED Flying is 210N-250N.
Turbine size for Normal Flying is 140N-160N.
Servos (Examples)
(6) × Chaservo HV4613 + (2) × Chaservo HV7010
(8) × MKS HBL550
( Similar Setups would also work)
Batteries
(2) x 2S 4000mAh 20C 7.4V RX LiPo
3S 3600mAh 20C 8.4V Turbine LiPo
Radio System
Preferred radio and receiver pairing
